NORMAPROFIL - M series

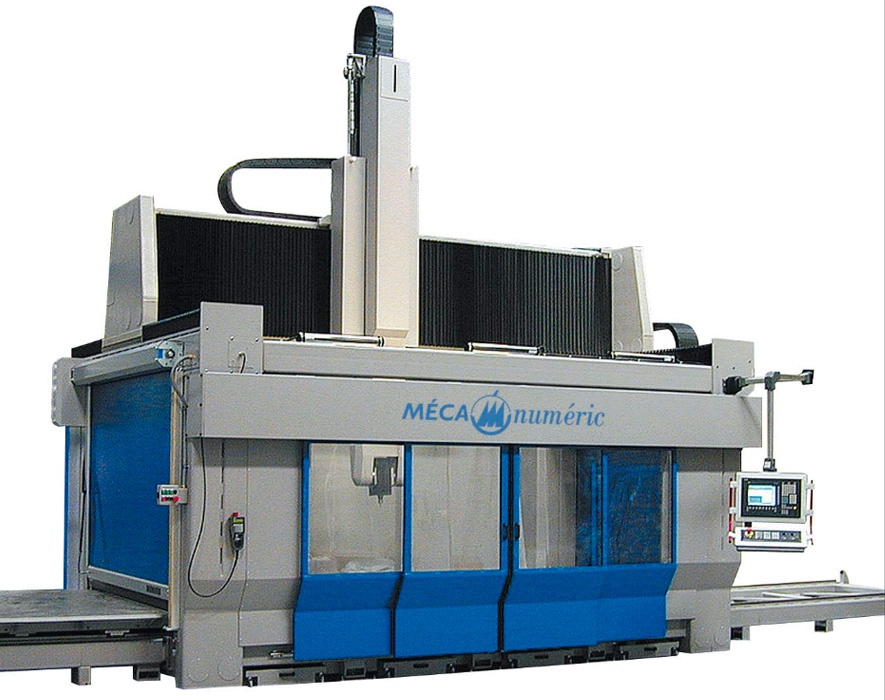

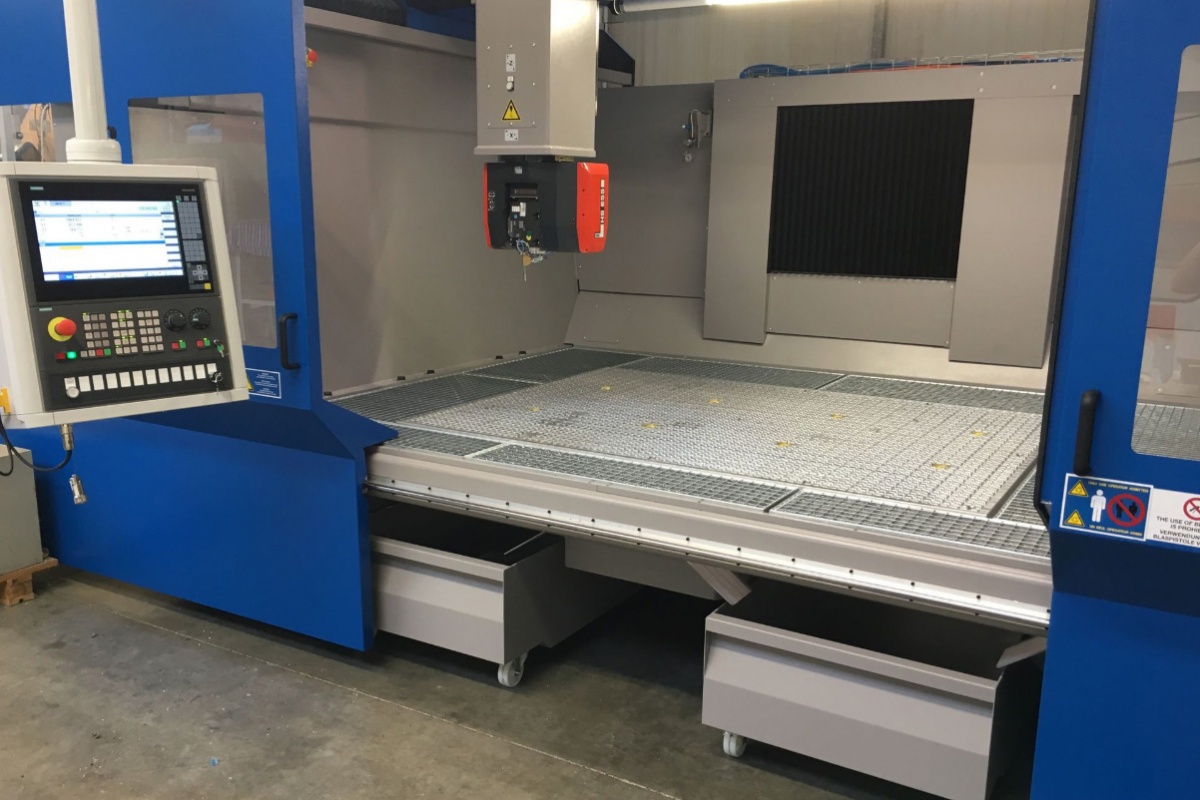

Fixed table, mobile gantry facing the operator.

  • Description
  • Technical datas
  • Fields of activity

Realization of models and molds or 5-axis machining of thermoformed, rotational molded parts ...


TECHNOLOGIES

  • Transmission by ball screw on the 4 Cartesian axes (X1, X2, Y, Z)
  • 2 rotary axes (C: +/- 200 ° and A: +/- 200 ° depending on the electrospindle)



5-axis milling machine optimized for machining the following materials:

  • Plastics and composites,
  • PU and PS foam etc ...
  • Aluminum (depending on the type of spindle),
  • Synthetic resins,
  • Wood and wood products,
  • Brass and alloys (depending on the type of spindle),



SOME OF THE POSSIBLE OPTIONS

  • Automatic doors
  • Vacuum plate for holding parts or tools (vacuum technology by side channel turbines or by vacuum pump)
  • Static tool magazine (6,10,15 tools)
  • Magazine mounted under gantry (for M3015 only) 12 tools
  • Tool measuring probe
  • Sound-absorbing full cover
  • Double table system for loading / unloading in masked time (for M3015 only)
  • Other useful formats on request

NC and Motorization

  • SIEMENS SINUMERIK 840 Di numerical control: X, Y, Z, C, A axes
    STN 10.4 inch OP010 color screen.
    Brushless motorization type 1FK7 with digital variators.
    Air-conditioned electrical cabinet.

  • SIEMENS SINUMERIK 840D digital control: X, Y, Z, C, A axes
    STN 10.4 inch OP010 color screen.
    Brushless motorization type 1FT6 with digital drives.
    Air-conditioned electrical cabinet.

  • NUM 1050 DIGITAL digital control: X, Y, Z, C, A axes
    12 inch TFT flat screen.
    MP03 operator panel.
    BPH brushless motorization with digital variators.
    Air-conditioned electrical cabinet.

SPINDLES





Power (S1) W / HP

Rotation max Cooling Tool Tightening Tool change
HSD ES350DS  6500 / 9 36000 water ER20 Manual
HSD ES779L-12 10000 / 14 24000 water   Automatic
HSK E40
HSD ES789L-16 16000 / 22 24000 water   Automatic
HSK F63



DIMENSIONS



  M1510

X stroke

2100
Y stroke 1480
Z stroke 750

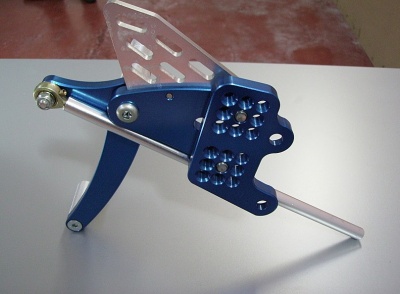

Parts for racing motorcycles
