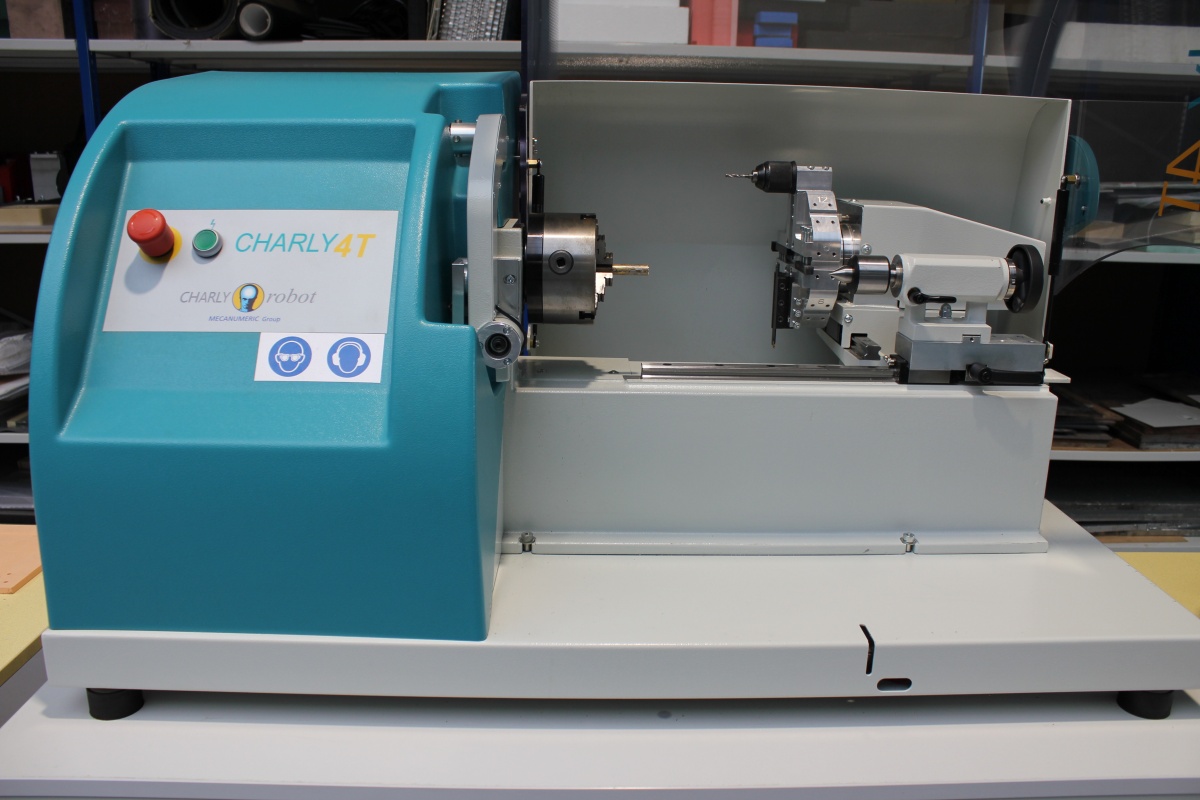

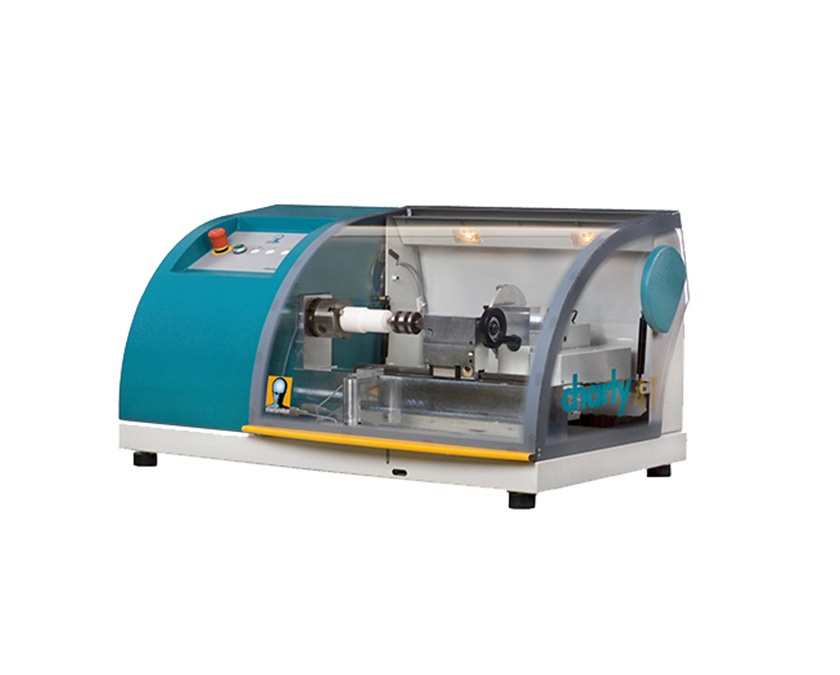

Charly4T
The simplicity for the turning of prototypes and small series, the technology for the performance
- Description
- Technical datas
- Fields of activity
STRENGTHS :
- ISO programming, industry standard.

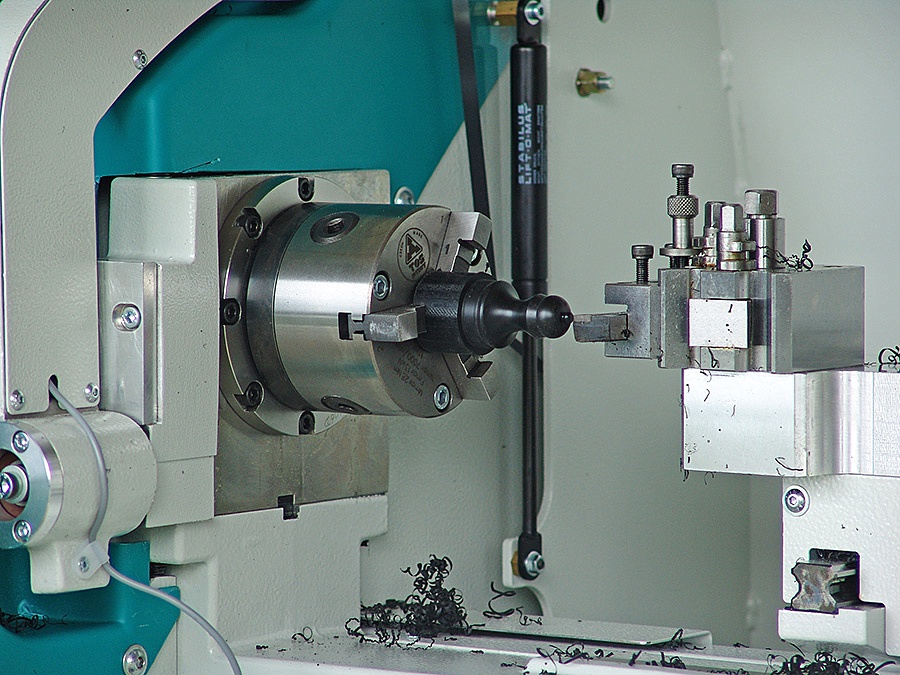

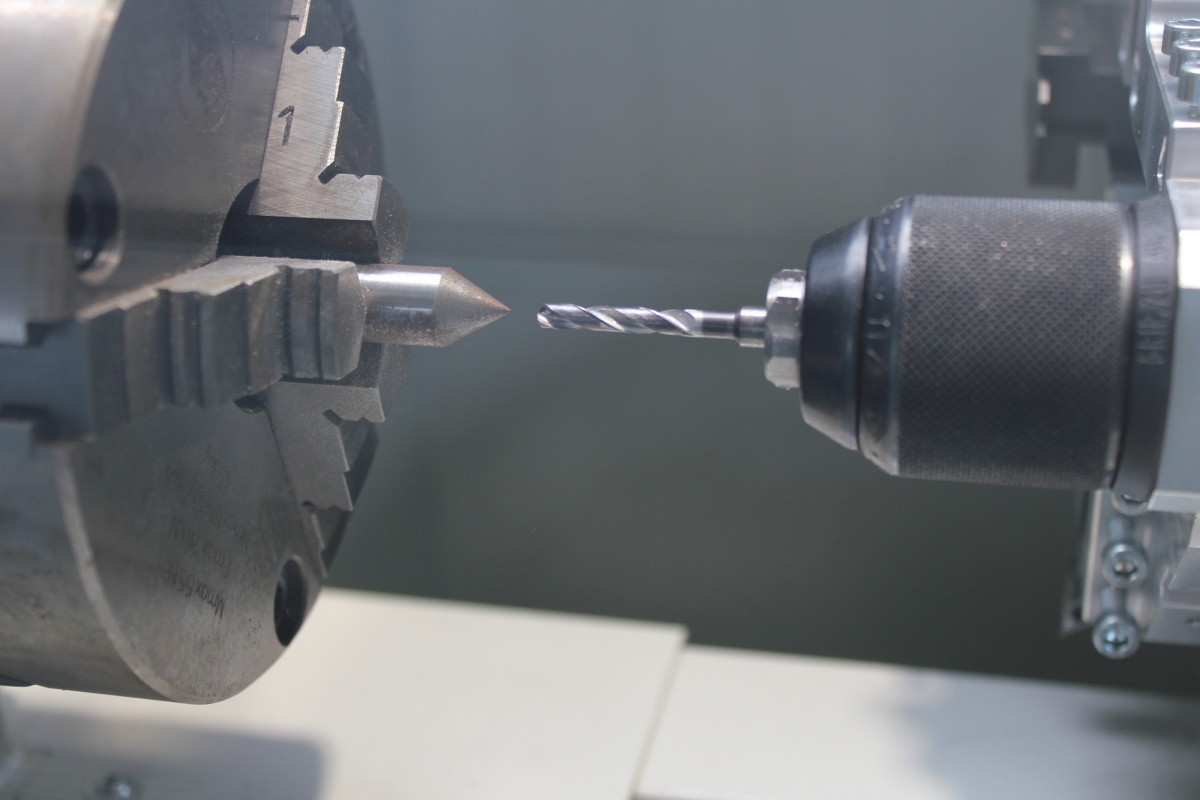

- Allows main lathing operations (rough facing, turning, groove, boring, drilling, threading, profile execution follow-up).
- Continuous speed variation of the spindle allowing machining at a constant cutting speed.
- Allows machining at constant feedrate.

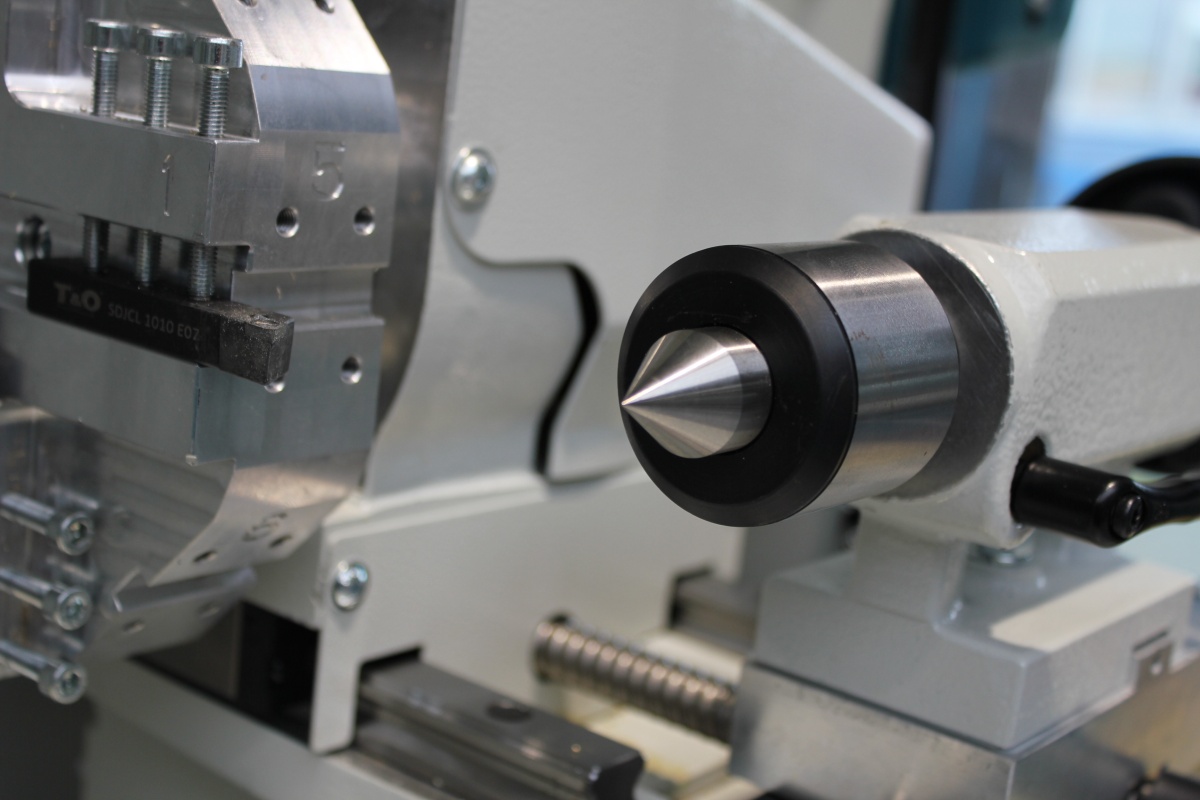

- 4 automatic tool turret (as an option).
- Automatic tool measuring with 4 key sensor.
- Reversal of the spindle rotation direction by programming.
- Design and ergonomy.
- Small footprint.
- Graphic and automatic programming by integrated CAM/CAM software.
- Ideal for prototyping and small series.
- Lathing of tender materials and metals (brass, aluminium…).
- Compliant with European safety directives 2006/42/CE.
| Charly4T Standard | Charly4T Pro | |
| Distance between point | 250 mm | |
| Max diameter ot the turned part on 50 mm | 100 mm | |
| 3 jaws chuck diameter | 80 mm | 125 mm |
| Spindle cone | CM3 | |
| S1 spindle max power | 0,4 kW | 0,75 kW |
| Tool-holder turret | 2 positions | 4 positions |
| X stroke | 65 mm | |
| Z stroke | 250 mm | |
| Lenght | 1200 mm | |
| Depth | 685 mm | |
