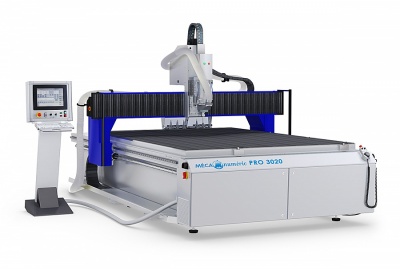

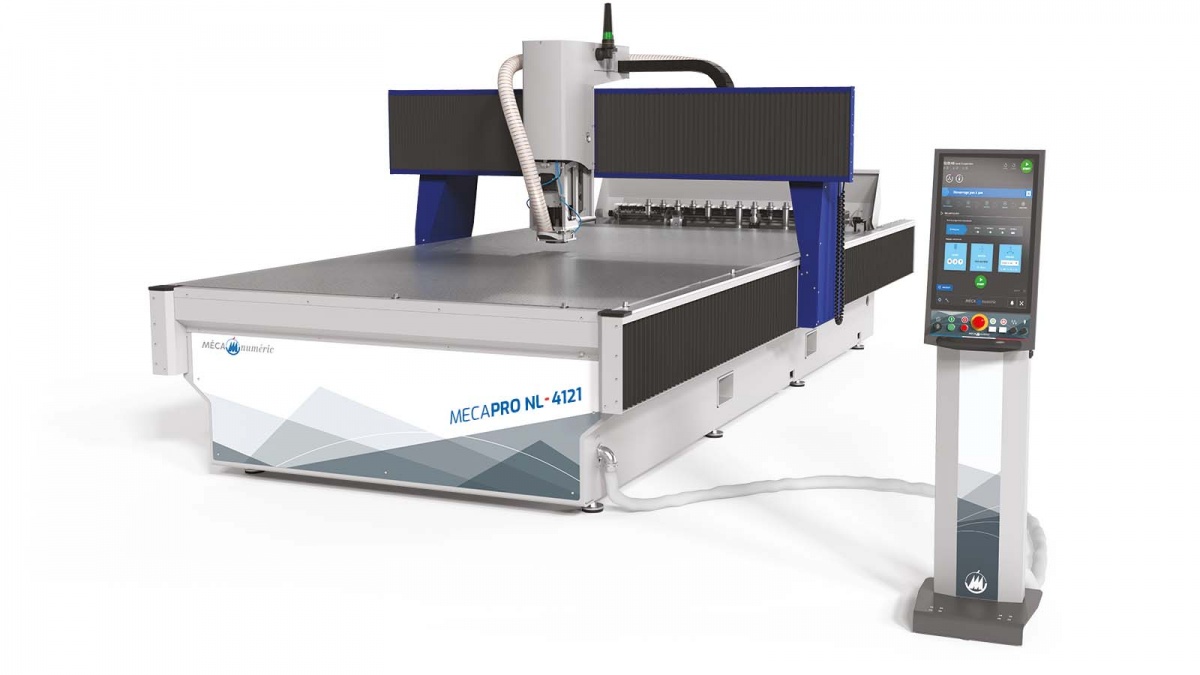

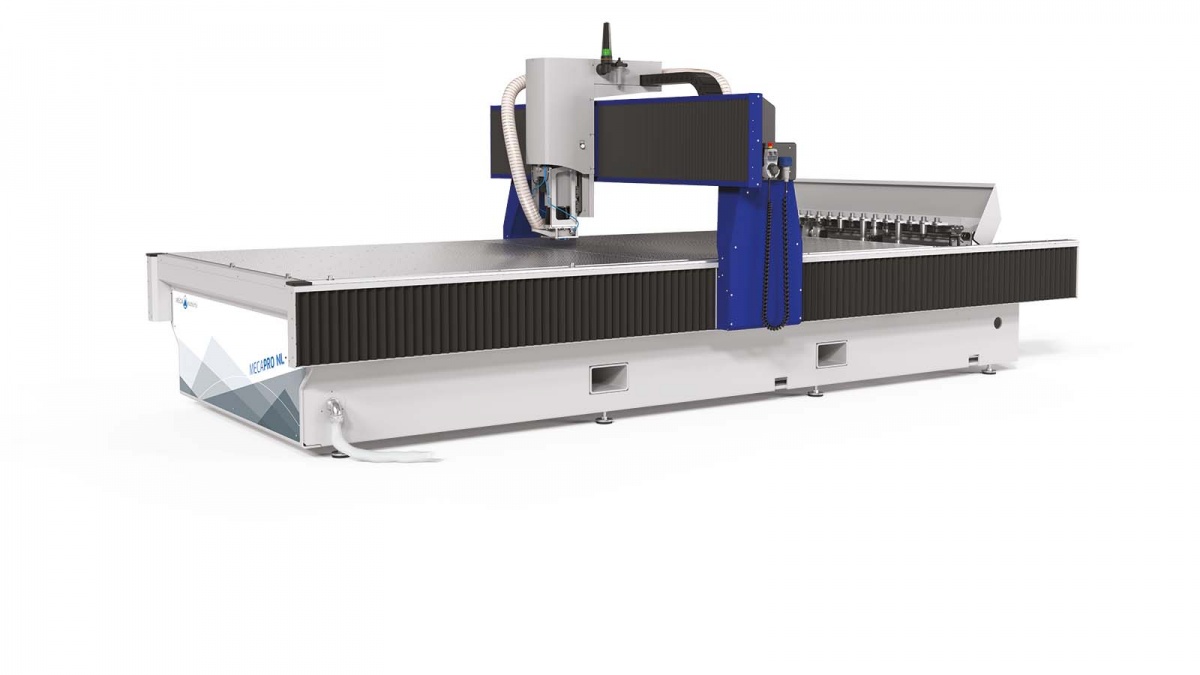

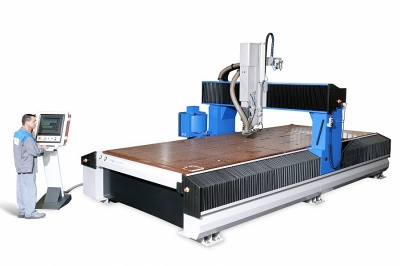

MECAPRO NL

Designed for intensive industrial use

Working area adapted to new plate dimensions (working width 1600 or 2100 mm) for a wide range of plate and unrolled materials :

• Polymers : PMMA, PEHD, PS, PET, PETG, PU, PC, ABS, PVC…in solid or honeycomb panels
• Wood and its by-products: MDF, TRESPA and others phenolic derivatives, natural wood…
• Lights alloys : Aluminium, Brass, Copper, Zinc…
• Composites : Alucobond®, Dibond® and similar, Glass/Epoxy, Carbon/Epoxy…
• Honeycomb panels: Nida®, Nomex®…
• Machinable plates for molds and models
• Hard materials only under conditions: Steel, Stainless Steel, Titanium
• Mineral base panels for ITE
• Rubber and derivatives
• Foams with all densities
• Paper, cardboard and derivatives
• Plastics with small thickness (PVC, PS, PET, PETG, ABS, PC…)

STRENGHTS :

VERSATILE AND CUSTOMIZABLE EQUIPMENT :

• High-speed machining (HSM)

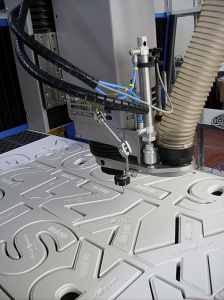

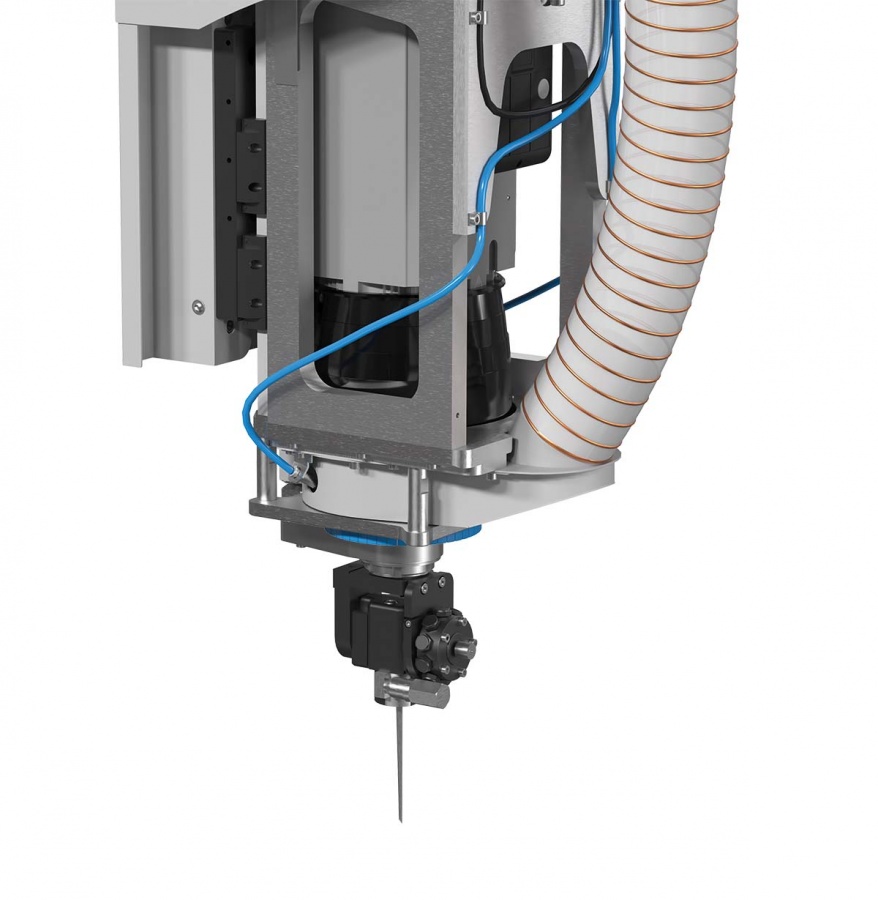

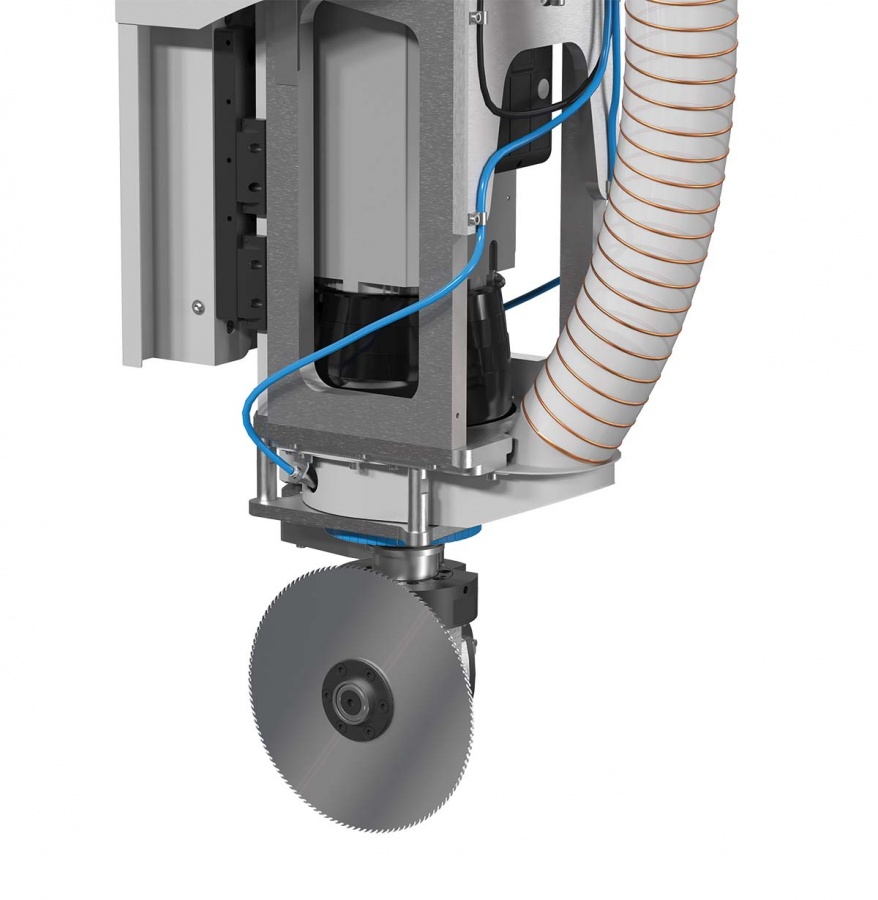

• Secondary pre-installed functions (heads non included): knife-cutting with tangential control, creasing by shaped wheels, cutting by disc blade, rigid tapping...
• Secondary optional functions: angle sawing, angle head, camera registration, tool cooling...

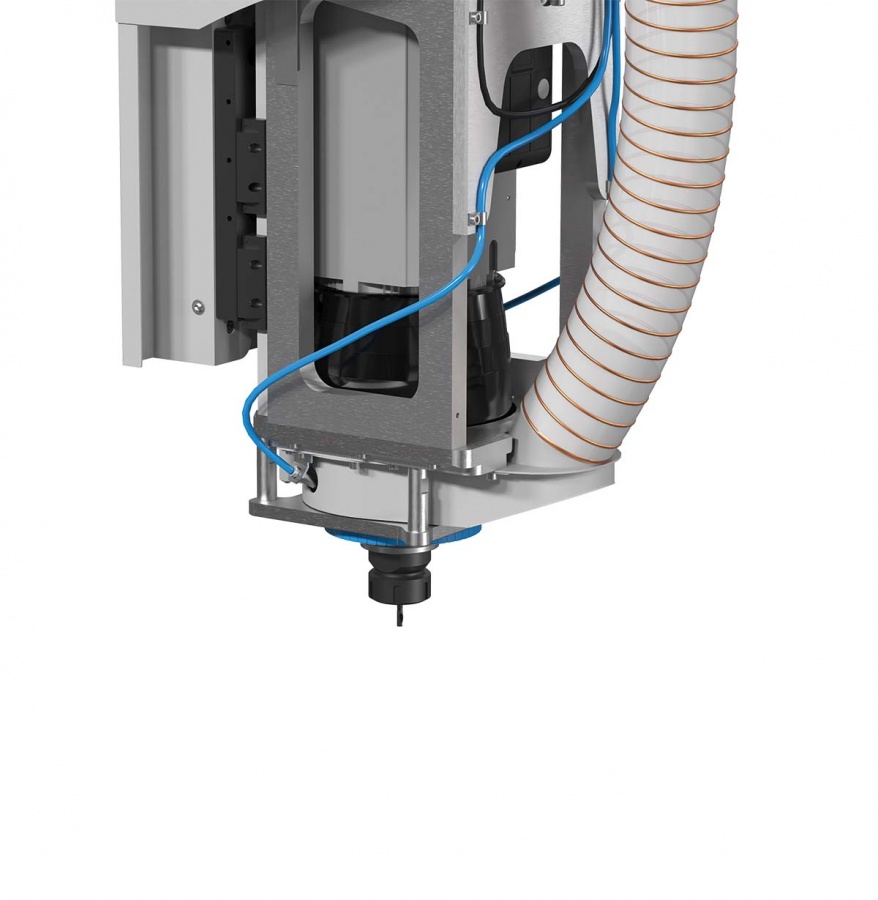

POWERFUL ELECTROSPINDLE WITH HIGH ROTATIVE SPEED

• 2 models available
• 4 ceramic bearings
• Shock, vibration and temperature sensors with digital control alerts

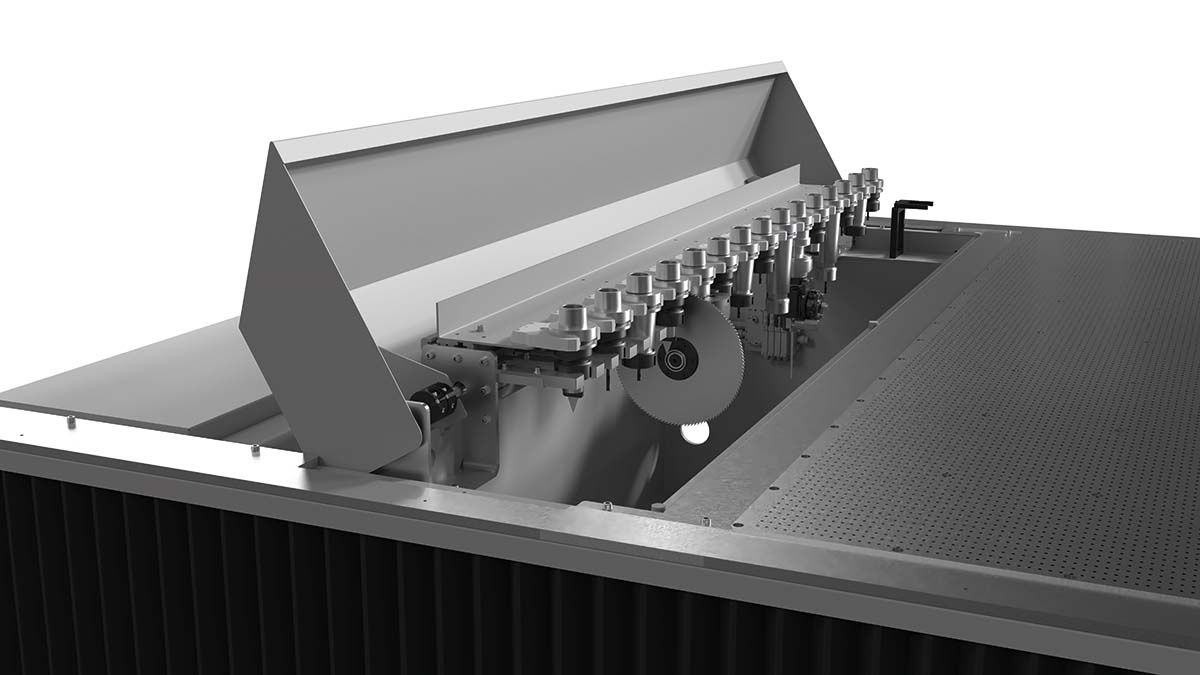

PRE-SET TOOL SHOP FOR ALL TYPES OF TOOLS AND HEADS

• 9 to 15 locations
• Including 4 to 6 combined locations for: cones for vertical tools, cones for tangential control heads, cones for angle heads
• Laser sensor for contactless measurement of tool length and diameter or the geometry and location of blades

DESIGNED TO LIMIT THE IMPACT ON THE ENVIRONMENT

• Position-controlled chip suction nose
• Vacuum table with variable power from 60 to 100% to always have the correct plate holding level with no electrical overconsumption

NUMERICAL CONTROL LATEST GENERATION

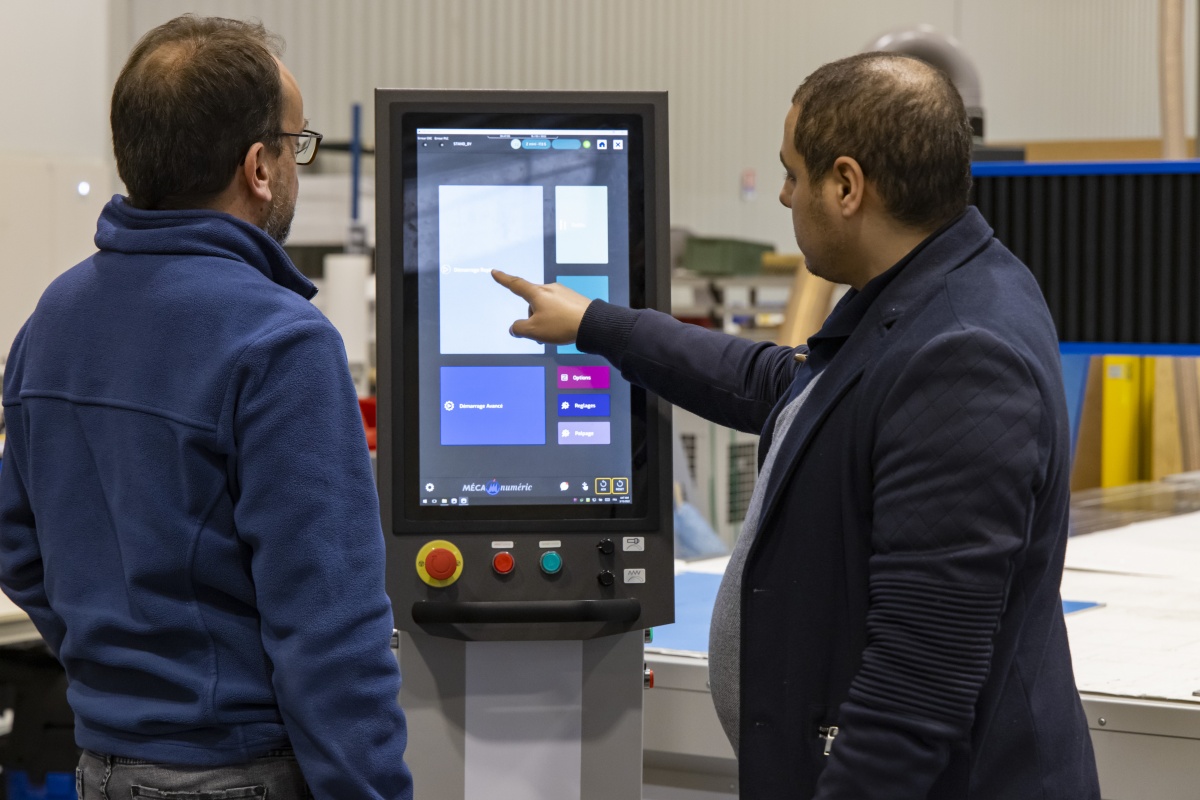

• 21 inches vertical touch screen on mobile control panel
• Modern, simple and user-friendly HMI with online operator guidance (to avoid oversights and errors)
