LABJET

Efficiency and accuracy of the water jet cutting combined in a compact size with industrial performances.

LABJET Leather cutting with pure water

  • Description
  • Technical datas
  • Fields of activity

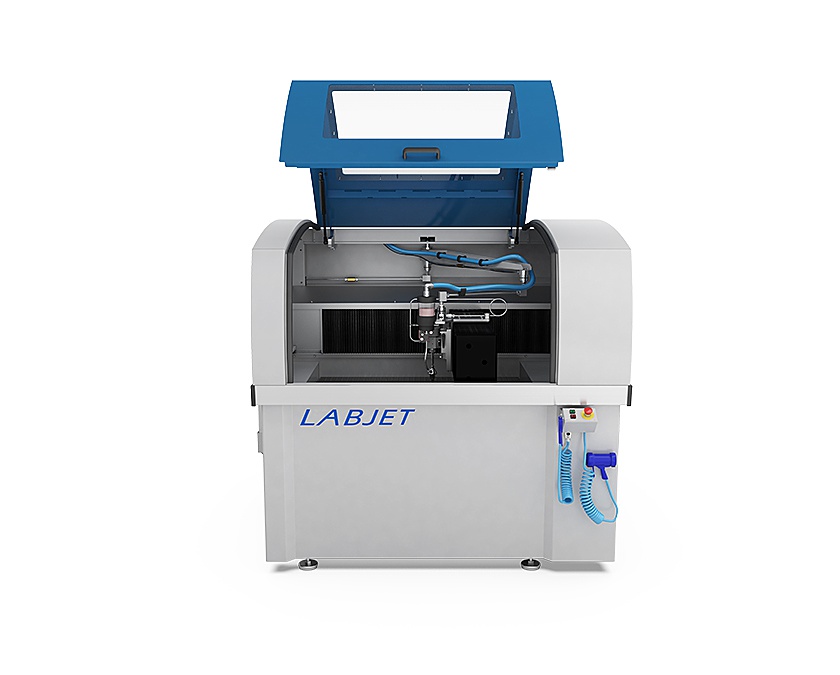

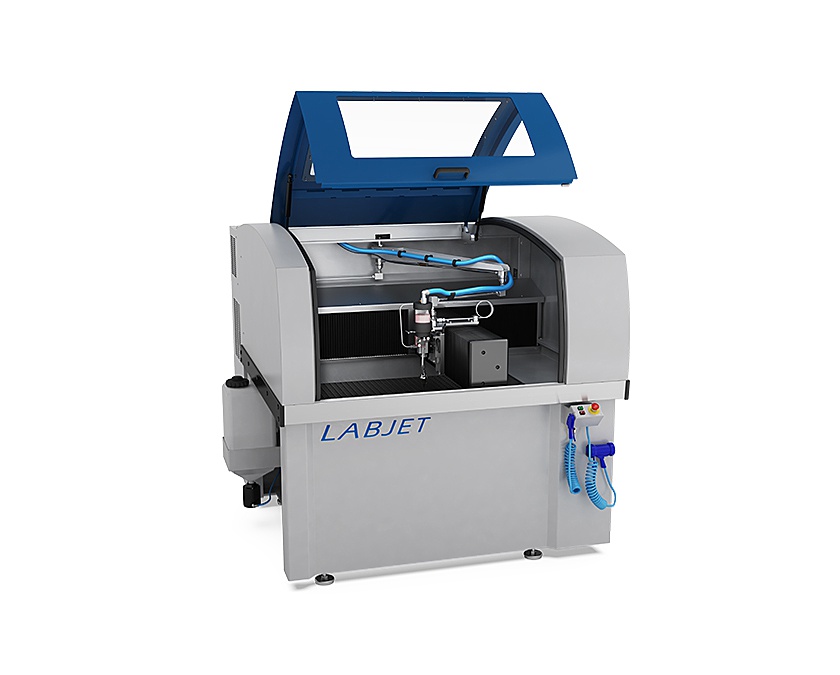

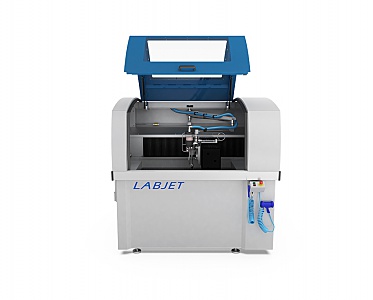

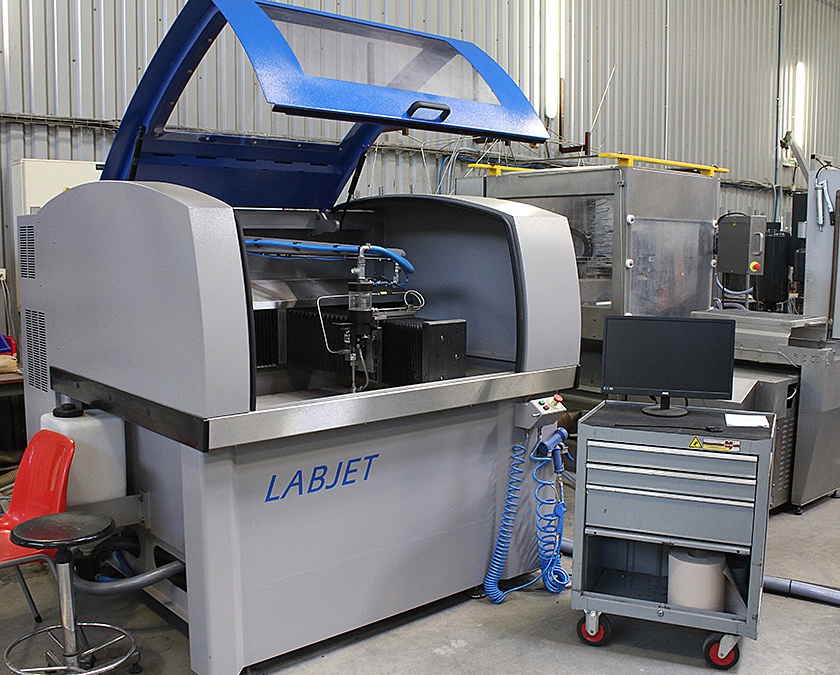

The LABJET is the ideal machine to meet the requirements of the industrials regarding accuracy and precision while controlling their budget. Delivered in a versatile format.

Proposed with a high-pressure pump 4000 bars of 10 to 20 HP, this machine enables the pure water jet cutting of soft materials or abrasive water cutting for hard materials.

Compact and easy to use, the LABJET combines precision, power and security for the industrial works.


STRENGTHS

• Compact equipment with integrated high-pressure pump.
• Fixed table in working area 1050 x 750 mm.
• Cutting of soft materials with pure water (rubber, plastic materials, foam, leather…) and hard materials (metal, glass, stone, composites materials…) with abrasive option.
• High pressure pumps 4000 bars.
• Driving system with numerical control CN9000 ISO and CAM software with specific applications for water jet cutting.
• 2D cutting head.
• Machine completely closed, can be operated safely even in school environment or general public.



The LABJET has a one-piece steel frame with integrated water collection tray and an aluminium gantry. The table top is made of galvanised steel for abrasive cutting, or with a plastic honeycomb coating for pure water cutting.
The LABJET's kinematics incorporate precision guides using ground rails and ball-bearing slides, the XY transmission is equipped with ball screws and the drive system is powered by "AC Brushless" servomotors.

  LABJET
X stroke 1050
Y stroke 750
Z stroke (manual) 50
Maximum dimensions of the plates in the tank in mm 1200x1000
Overall length in mm 2024
Overall width in mm (settling bowl not included) 1826
Height in mm, closed cover / opened cover 1750/2440
Weight in kg empty tank 1600
Bag / Wallet

Bag / Wallet

Leather furniture

Leather furniture

Satellites

Satellites

Water jet cutting

Water jet cutting

Shoes

Shoes

Aircraft interior furnishing

Aircraft interior furnishing

Airbag elements

Airbag elements

Belts

Belts
