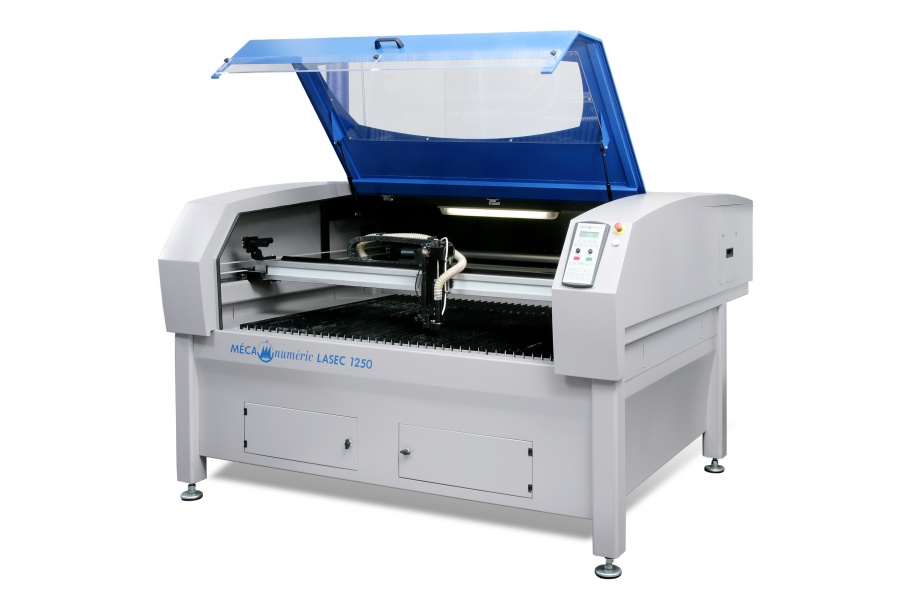

Fixed table, mobile gantry, fixed laser and mobile mirrors. This equipment can realize cutting in vectorial mode and engraving in raster mode.

  • Description
  • Technical datas
  • Fields of activity

EQUIPMENT OPTIMIZED FOR CUTTING OR ENGRAVING ON FOLLOWING MATERIALS :



  • Plastics (except with PVC basis : chemical risks)
  • Synthetic resins
  • Wood and by-products
  • Leather
  • Soft stones, marble, granite (only engraving)
  • Mineral glass (only engraving)
  • Fabric
  • Cardboard


TECHNOLOGIES :

  • Transmissions by notched belts on X and Y (double belt on Y) and by ball screws on Z axis
  • Guidance : precision linear rails with preloaded ball slides.
  • Fixed CO2 laser, mobile optics by 3 silicon mirrors, integrated shutter.
  • Numerical command in real time CN R3V4, DSP (Digital Signal Processor) combined with FPGA (Field-Programmable Gate Array)
  • Motorisation : brushless servomotors with absolute encoders + measure gauge on Y axis (for increased precision in raster mode)
  • Fume suction by inferior table
  • Standard table top in anodized aluminum bars and special anti reflection profiles.


OPTIONS :

  • Numerical Z axis - travel 80 mm for UP/DOWN of the focusing head
  • Fume suction and treatment unit with suction unit TEKA LMD517 with 3 filters + active carbon filters (1500 m3/h - 2800 Pa - 1,5 Kw ) + 2 manual shutters for area selection
  • Table top in aluminium honeycomb
  • Laser pointer with red laser diode
  • Automatic or manual debatcher for soft materials
  • Autofocus for focusing lens

PERFORMANCES

  • Repeatability in mm: +/- 0.08
  • Resolution in mm: 0.0025
  • Acceleration: 10 m.s2

DIMENSIONS

  LASEC 1250
X stroke 1505
Y stroke 1250
Z stroke 50
