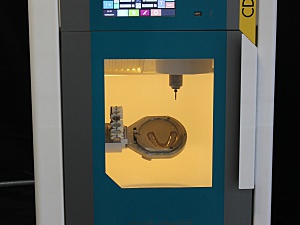

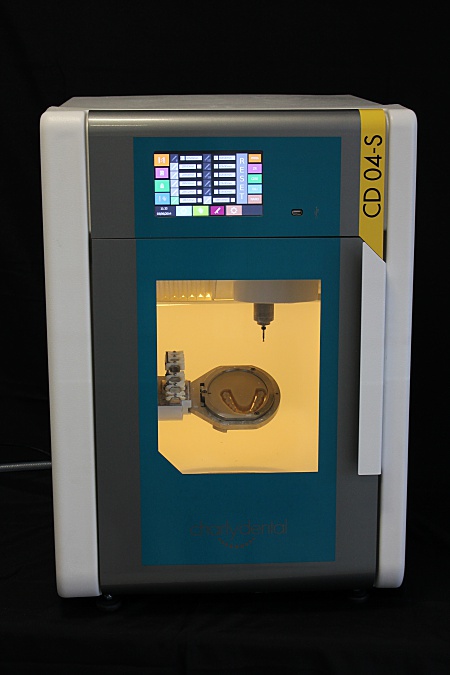

CHARLYDENTAL CD04-S
Milling/grinding machines for dental prostheses available in versions 4 positioned axes, perfect for a simple and fast daily production of prostheses in soft materials and ceramics, with dry or lubricate tool.
- Description
- Technical datas
- Fields of activity
Thanks to their very compact dimensions and to the original choice of kinematics, they offer a maximum of flexibility for a minimum of space.
They are equipped with an open CAD/CAM system which can be used with the main scanners, CAD/CAM software and consumables used in the dental field.
Other highlights of this concentrate of innovation totally designed and manufactured in France :
• Power reserve by 500W – 60000 rpm spindle and brush-less servo-motors

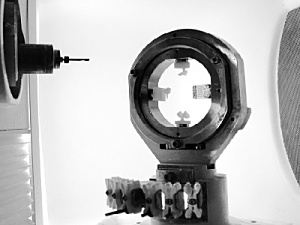

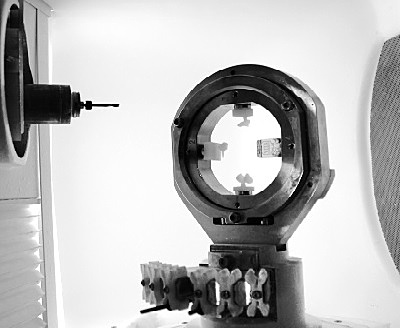

• Flexibility and accuracy of milling/grinding with angulation of the rotary axes
• 4th axis : +/- 30°
• Accuracy by high quality kinematics, ball-screws, and rectified rails
• Simplicity of use thanks to the colour touch screen and its driving friendly software
• High performance automatic monitoring of the tools and the brother-tools changes, wearing and tools breaking detections
TECHNICAL CHARACTERISTICS
- Brushless servo motors
- Spindle 500 W 60,000 rpm
- Automatic tool change (with 12 tools in the changer)
- Precision measurement of tool length
- Tool breakage detection
- Tool wear detection
- Integrated suction sensor
- Communication port: 1 USB and 1 ETHERNET
- Power supply: 230 VAC 50/60 Hz
DIMENSIONS
| CD04-S | |
| Lenght | 542 |
| Widht | 600 |
| Height | 736 |
| Weight | 90 |

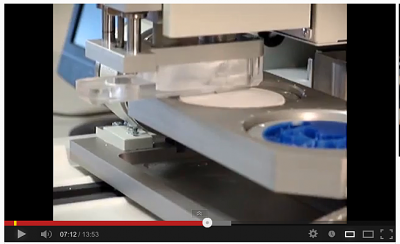

Automatic undercut milling on charlydental 4 axes (video)
Charlydental 4X (video)
4 or 5-axis machines CD04-S, CD-05-S (video)
Crown in Lithium Disilicate block
Execution of orthondic trays
Execution of rest trays
Execution of orthodontic study models
Execution of single crown
Execution of telescope crown
Execution of bridge
Execution of single framework (cap) and bridge
Execution of temporary crown and bridge
Execution of screwed-in bar
Execution of framework (Stelitte, Squelette…)

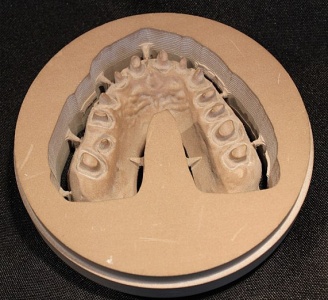

Execution of dental model
Execution of Inlay-core
Execution of inlay onlay
Execution of denture
