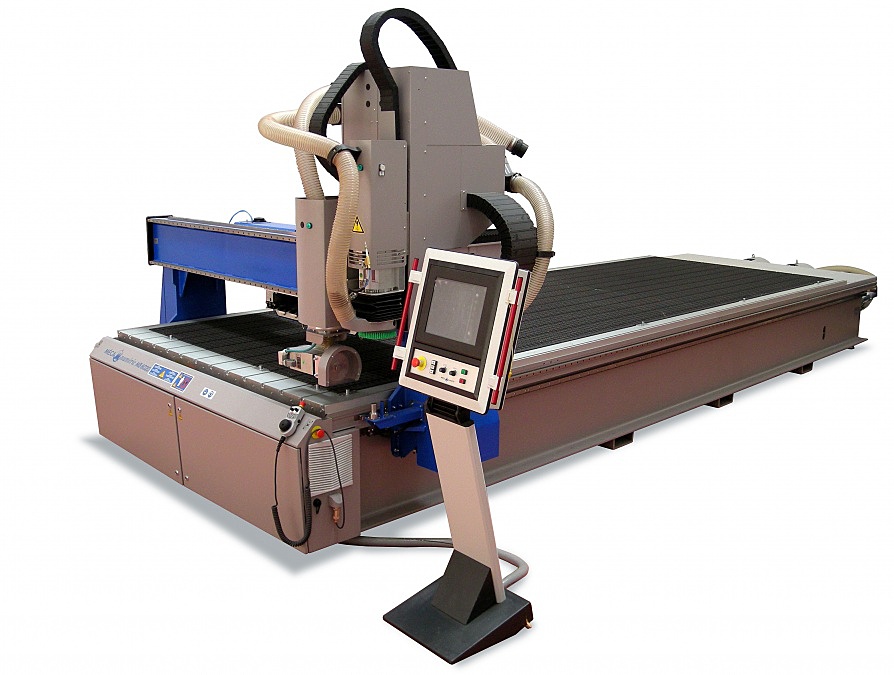

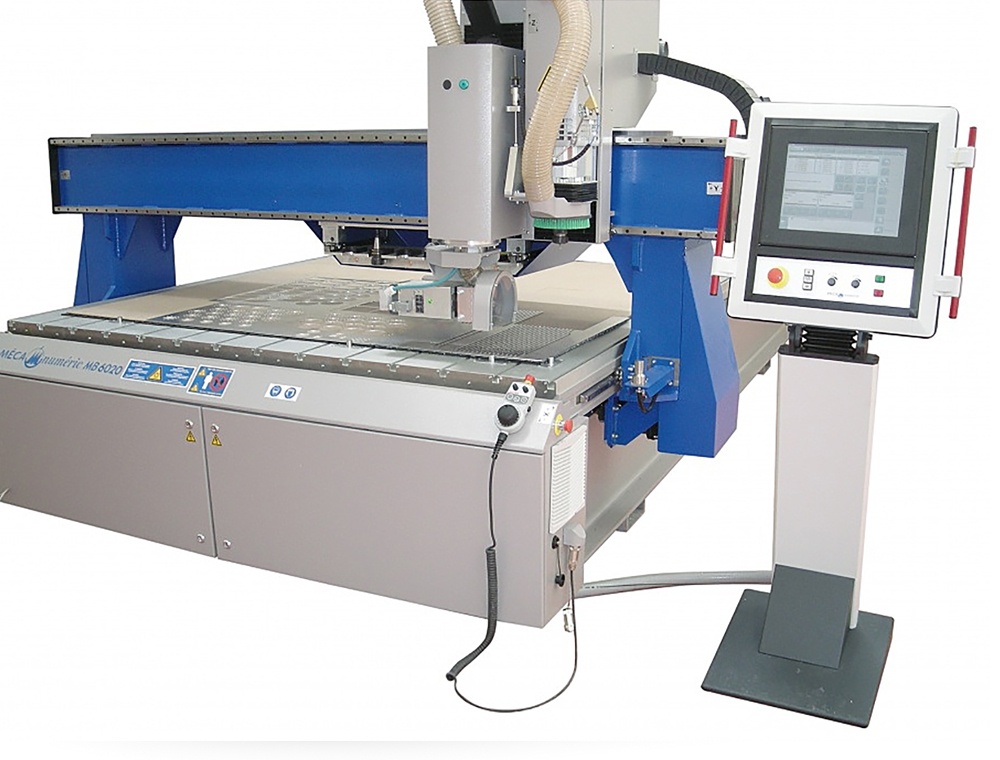

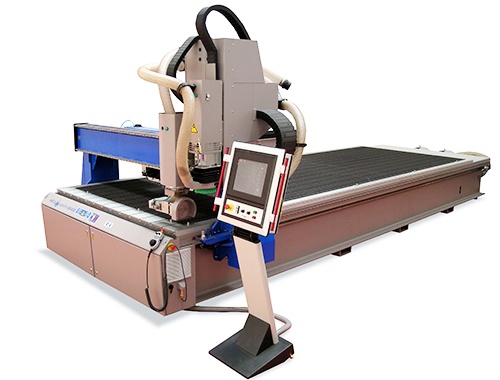

MULTI-SPINDLE CNC 4-AXIS MILLING MACHINE
High productivity system for the rapid cutting of sheet materials in the building (facades), sign or fitting out of commercial vehicles (refrigerated trucks, etc.) sectors.

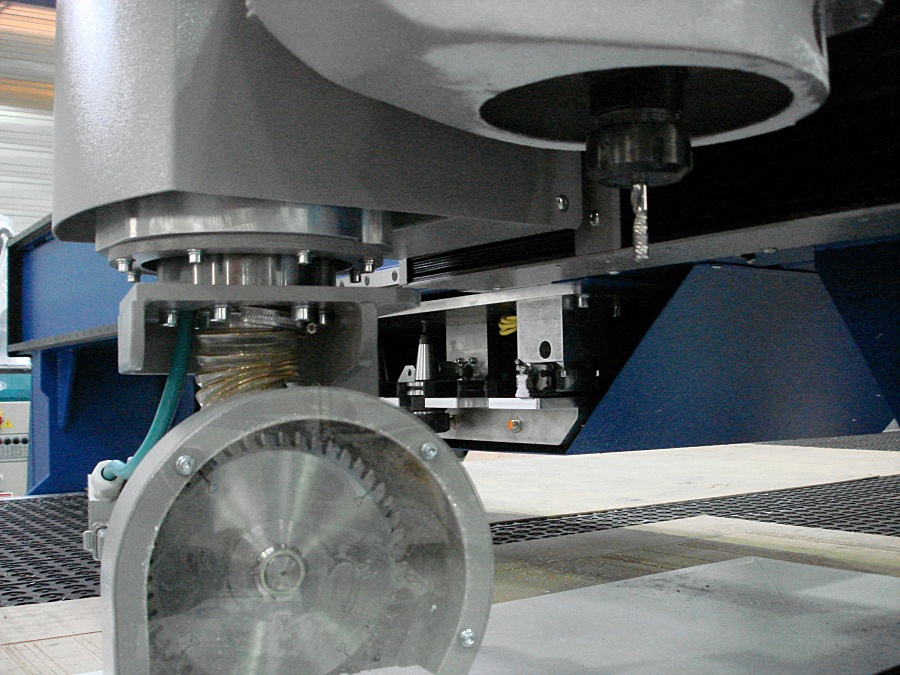

4-axis CNC milling machine that can be equipped with a high-power vertical electrospindle and a horizontal electrospindle that can be rotated 360 degrees.
- Kinematic assembly with fixed table and mobile gantry.
- Monobloc frame in mechanically welded steel.
- Mobile gantry in mechanically welded steel.
- Vacuum tray in aluminum profile.
- Support of the plates by the vacuum generated either by lateral channel turbines or by vacuum pumps with nozzles.
- Automatic selection of zones by solenoid valves. Timing stops automatically retractable plates.
- Motorization by AC Brushless servomotors on the 6 axes (X1-X2-Y-Z1-Z2-C).
- Transmission by high precision rack and pinion systems for X and Y axes, ball screw on Z axes, gearbox without play on C axis
- Guides by rectified rails and pre-loaded pads with ball circulation.
- MECANUMERIC CN7000 Digital Control with 15 inch touch screen, integrated hard drive, Ethernet port, USB port. Import of files in ISO code.
- Wide choice of horizontal and vertical electrospindles.
Some of the materials that can be used (depending on the electrospindle and the tool chosen):
- Rigid plate plastics (PMMA-PC-PS-PVC-ABS ..)
- Expanded plastics and cellular sheets
- Rigid foam (PU- PS-…)
- Semi-rigid foams (KAPA line®,…)
- Composite materials for the building industry: Alucobond®, Dibond®, Reynobond®, ..
- Composite materials for industry (polyester resin filled with glass fiber, carbon fiber, etc.)
- Wood and wood products
- Polyester resins
- Light alloys aluminum base or copper base
SOME OF THE POSSIBLE OPTIONS
- Chip extraction by a wide choice of industrial suction groups.
- Different vacuum plates.
- Tool magazine on board (capacity 6 cones) with tool length sensor.
- Tool lubrication system / Tool / material cooling system
- Suction zones with automatic selection controlled by numerical control.
- SIEMENS SINUMERIK® 840 Di digital control and SIEMENS servomotors.
- Retractable timing stops (5 lateral stops and 3 frontal stops for MB60xx or 3 and 2 for MB42xx).
- Automatic dispenser for VILMILL® support film.
- Remote electronic crank.
- Safety zone around machine controlled by radar or light curtains.
- Automatic unloading loading system by spreader or interchangeable tables.
TECHNICAL CARACTERISTICS :
- Maximum speed: 1000 mm / sec
- Acceleration: 1 ms²
- Repeatability: +/- 0.05 mm
- Resolution: 0.001 mm
|Z-axis travel in mm (maxi/working travel)||340/100|
