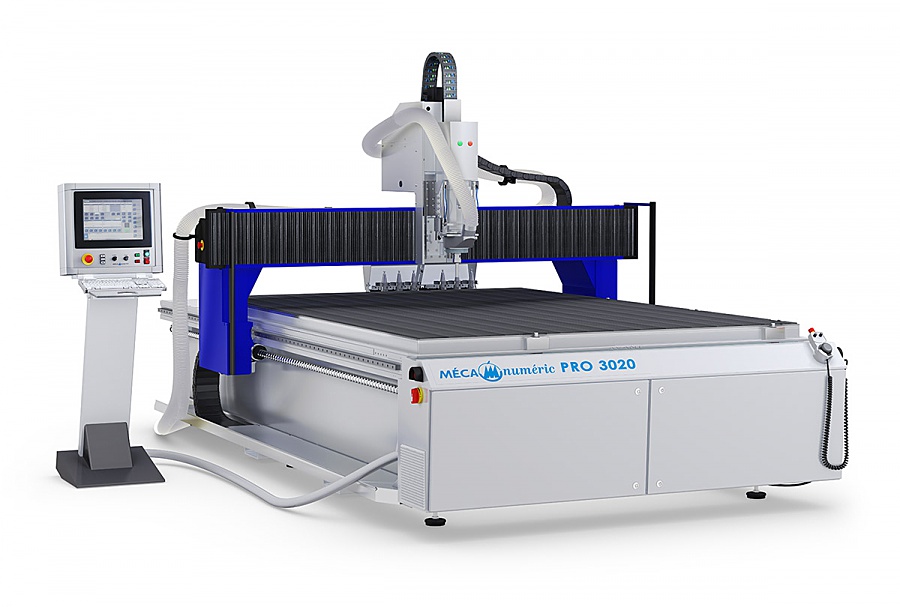

For professionals, this 3 axis CNC milling equipment range offers an excellent price ratio/performances, in many industrial sectors.
- Technical datas
- Fields of activity

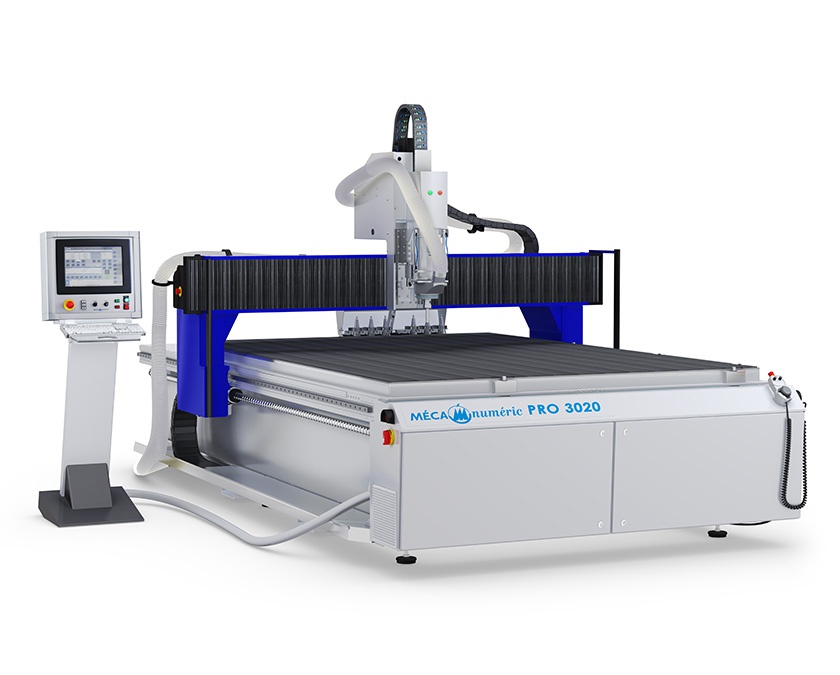

Precision milling/cutting machine (router) with simple use for machining plate materials in the sectors of advertising, sign, sign board, POP, plastics, aluminium transformation….. The MECAPRO range is very versatile and be used for a large variety of applications / materials.
- Precision milling/cutting CNC machine (router), easy to use with numerous possibilities of customization.
- Designed and realized for a professional use.
- Machining of sheet plates in various fields such as aeronautics, plastic processing and composites, precision mechanics, aluminium processing, advertising and POP…
- Equipment with fixed table in working areas from 1000x1500 mm to 2500x6000 mm as standard and up to 3500 x 16000 in special realization.
- Innovative and efficient vacuum tables with turbine technology or vacuum pumps.
- MECANUMERIC numerical controls as standard or SIEMENS or HEIDENHAIN type as option.
- Quality kinematics integrating industrial components delivered by the world leaders in their field, mounted on stabilized and welded steel frames.
- Options for trades adapted to the current requirements of customers in each activity sector.
Some of the materials to be used (according to the selected spindle and tool) on :
- Plastic in rigid plates (PMMA-PC-PS-PVC-ABS..)
- Expanded plastic and alveolar plates
- Rigid foams (PU- PS-…)
- Semi rigid foams (KAPA line®,…)
- Composite materials for building : Alucobond®, Dibond®, Reynobond®,..
- Composite materials for industry (polyester resin loaded with glass fiber, carbone fiber...)
- Wood and by-products.
- Polyester resins.
- Light alloys with Aluminium base or copper base.
- Steel and stainless steel
- Soft stones, marble, granite (only engraving)

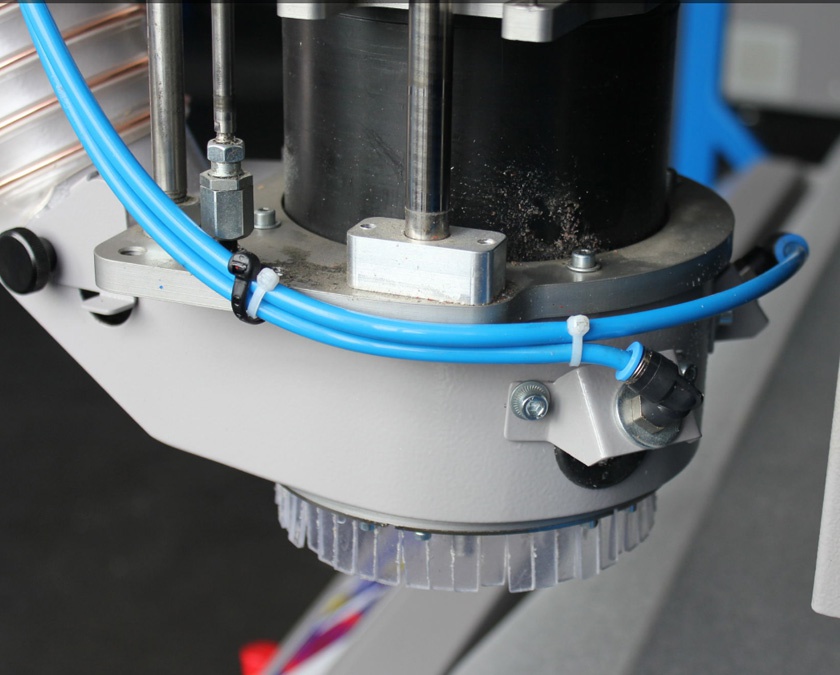

- Suction of milling chips by a large range of professional suction device .
- Various vacuum tables
- Static tool shop or rotative tool shop
- Tool coolant by oil spraying - Tool / material cooling system by frozen air .
- Multifunction heads options (M3TH) for 3 tools with tangential control
- Cutting knife for material thickness <2 mm
- Vibrating cutting knife for light and alveolar materials till 15 mm thickness
- Grooving tool for packaging application
- (GRAFITRONIKS®, OPTISCOUT®, ICUT®) vision registration/compensation system by camera.
- Horizontal numerical divisor (4th axis)
- SIEMENS numerical control and SIEMENS servomotors
- Automatic debatcher for holding material VILMILL®
- Multi-head system (2, 3 or 4 heads) for simultaneous machining of several parts
- Security zone around machine controlled by radar or immaterial barriers

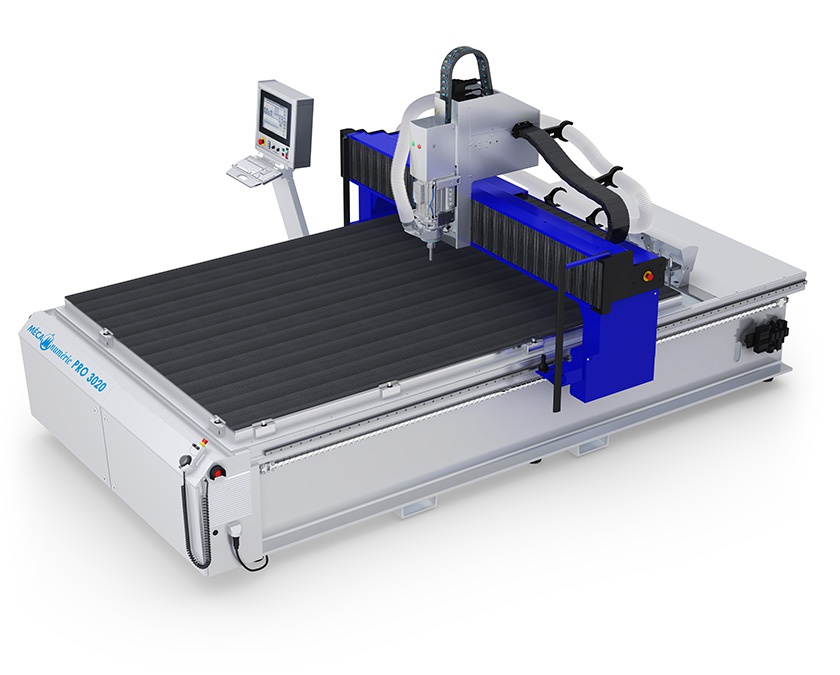

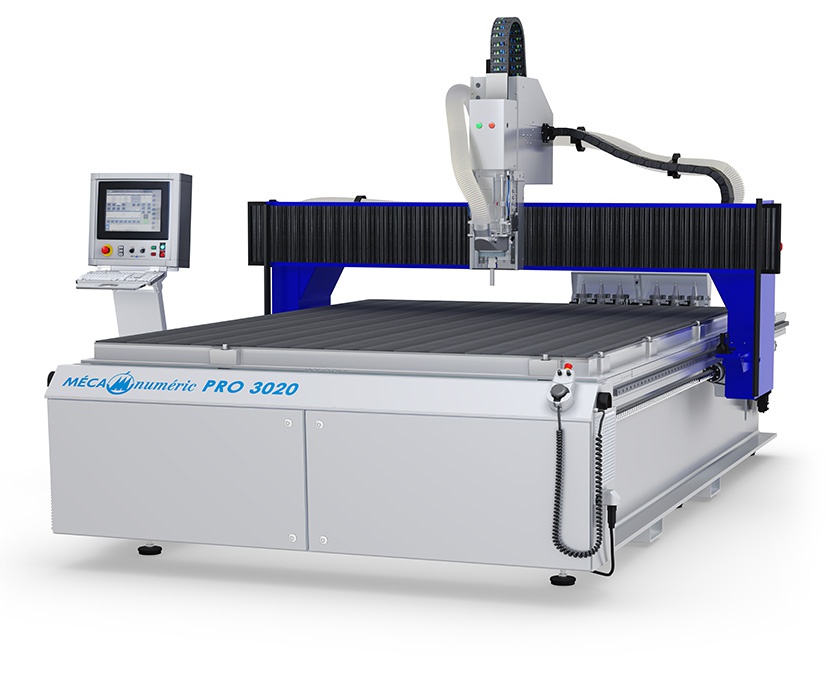

TECHNICAL DESCRIPTION :
- Structure with fix table and moving gantry.
- Welded steel monobloc frame
- High inertia welded frame and moving gantry.
- Vacuum table in aluminium profiles or composite
- Holding of plates by vacuum generated either by side channel blowers, or by claw vacuum pumps. Selection of the zones by manual valves or automatic valves option.
- Motorisation : AC Brushless servomotors on 4 axes (X1-X2-Y-Z). Double driving on X axis.
- Transmission : high precision ball screw on all axes.
- Guidance : grinded steel rails and preloaded ball bearings
|MECAPRO 1015||MECAPRO 3015||MECAPRO 3020||MECAPRO 4020||MECAPRO 6020|
|Z stroke (standard / option)||250/400||250/400||250/400||250/400||250/400|
|Maximum material width||1640||1640||2200||2200||2200|
|Power S1 - S6 in W||Rotation speed rpm||Cooling||Tool change|
|HF80||2500 - 3200||8000 - 40000||Water with cooling unit||Automatic, SKI20|
|SEV1090||3400 - 4200||2000 - 24000||Air by electric fan||Manual|
|ES929||7500 - 10000||2000 - 28000||Air, natural convection||Automatic, ISO30|
|ES351||6500 - 9000||2000 - 40000||Water with cooling unit||Automatic, HSK E32|
